Compaction Plates

  • Enclosed frames for engine protection with hoist hook recess
  • Cast aluminium throttle for durability and comfortable operator control
  • Ductile iron base for strength and longevity
  • Cast aluminium enclosed belt guard protects clutch from soil and sand ingress
  • Hydraulic reversing mechanism with flexible Manouverability allows forward and backward and on the spot compaction
  • Models with intergrated transport wheels
  • Rubber mat options



MODEL ENGINE WEIGHT PLATE SIZE FREQUENCY VPM CENTRIFUGAL FORCE TRAVEL SPEED GRADIANT CLIMB WATER TANK RUBBER MAT
BTPC60H HONDA GX160 65KG 500 X 360 6000 10.5kN 25m/min 35% OPTION NO
BTPC60RH HONDA GX160 80KG 480 X 350 6000 15kN 25m/min 35% OPTION NO
BTPC95H HONDA GX160 95KG 530 X 500 6000 15kN 25m/min 35% YES OPTION

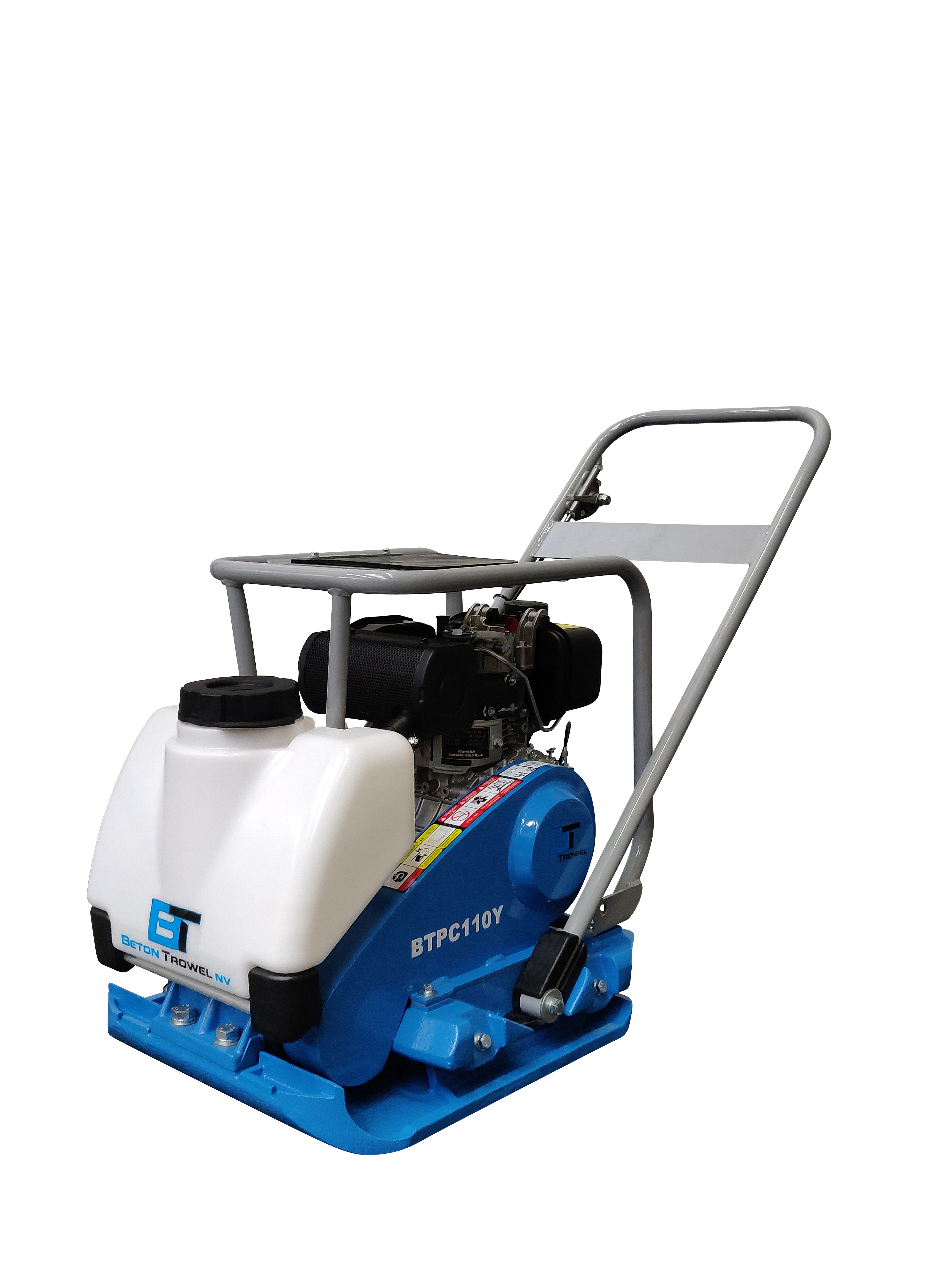

BTPC110Y YANMAR L48 DIESEL 110KG 525 X 500 6000 15kN 25m/min 35% YES OPTION
BTPC160H HONDA GX200 160KG 700 X 430 5400 27kN 25m/min 35% YES OPTION
BTPC160Y YANMAR L70 DIESEL 180KG 700 X 430 5400 27kN 25m/min 35% YES OPTION

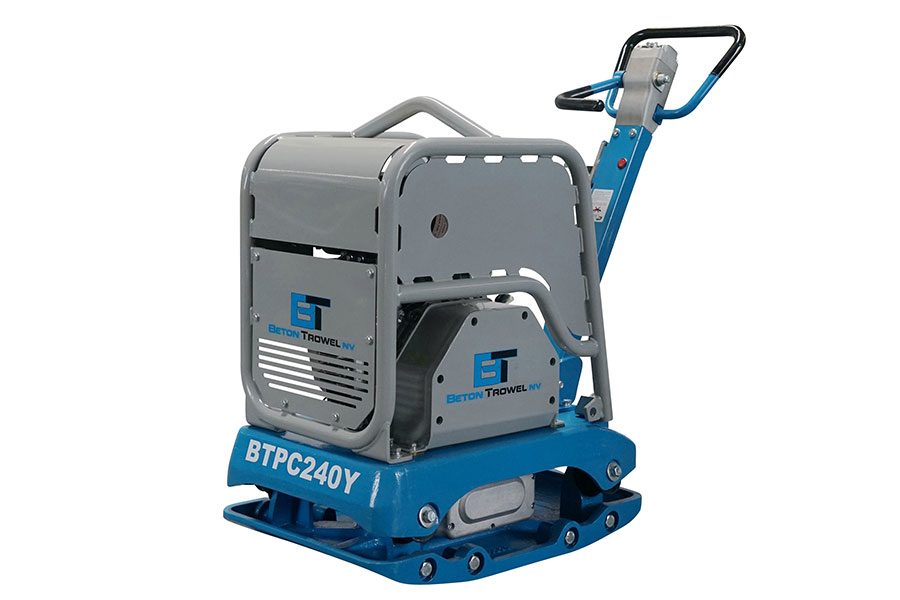

BTPC240Y YANMAR L70 DIESEL 260KG 700 X 450 5200 35kN 23m/min 35% NO NO

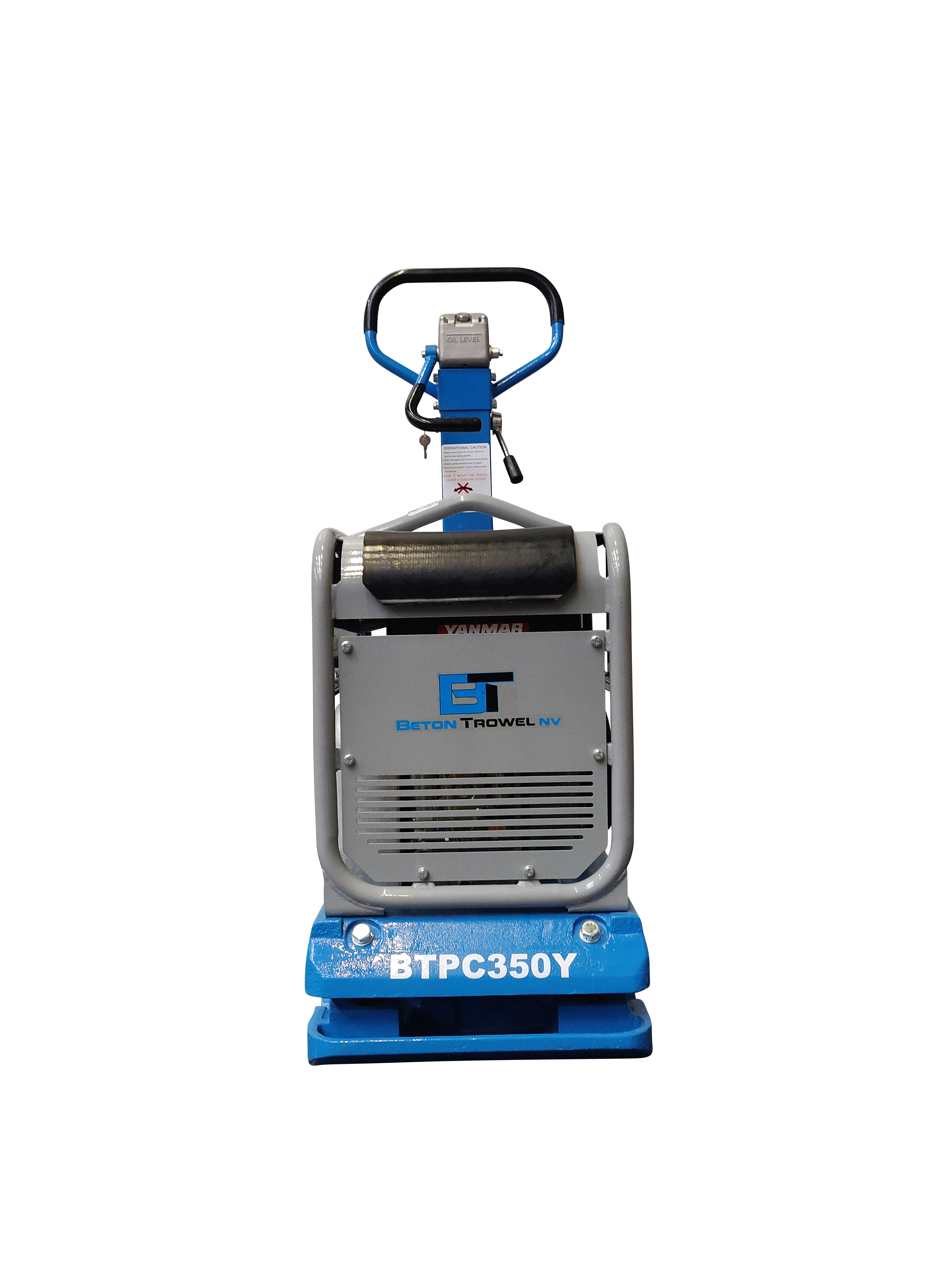

BTPC350Y YANMAR L100AE DIESEL 360KG 860 X 485 4400 45kN 23m/min 35% NO NO
BTPC450Y YANMAR L100AE DIESEL 460KG 900 X 500 4400 50kN 23m/min 35% NO NO

Download Spec Sheet

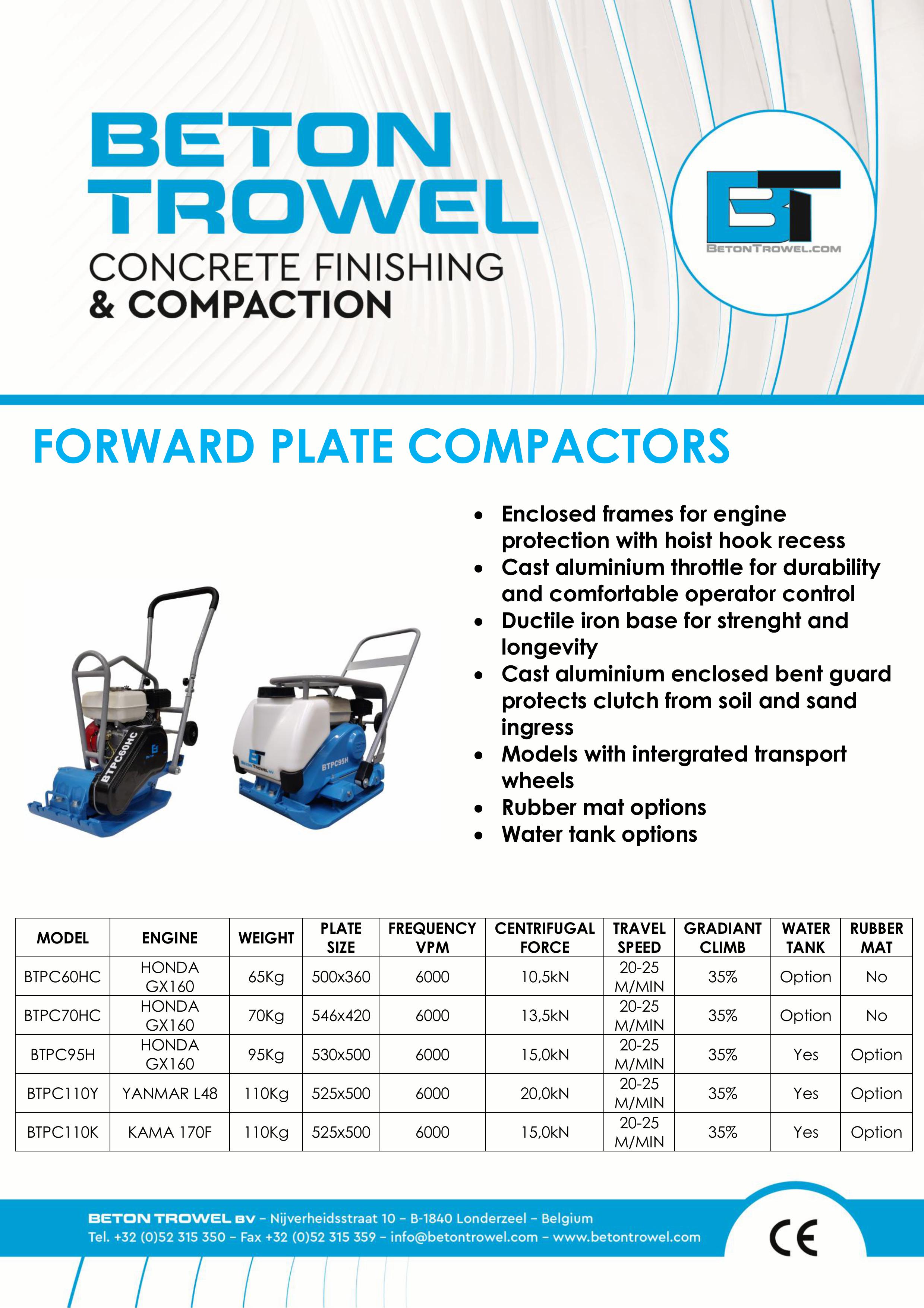

Forward Plate Compactors

Forward Plate Compactors BTPC

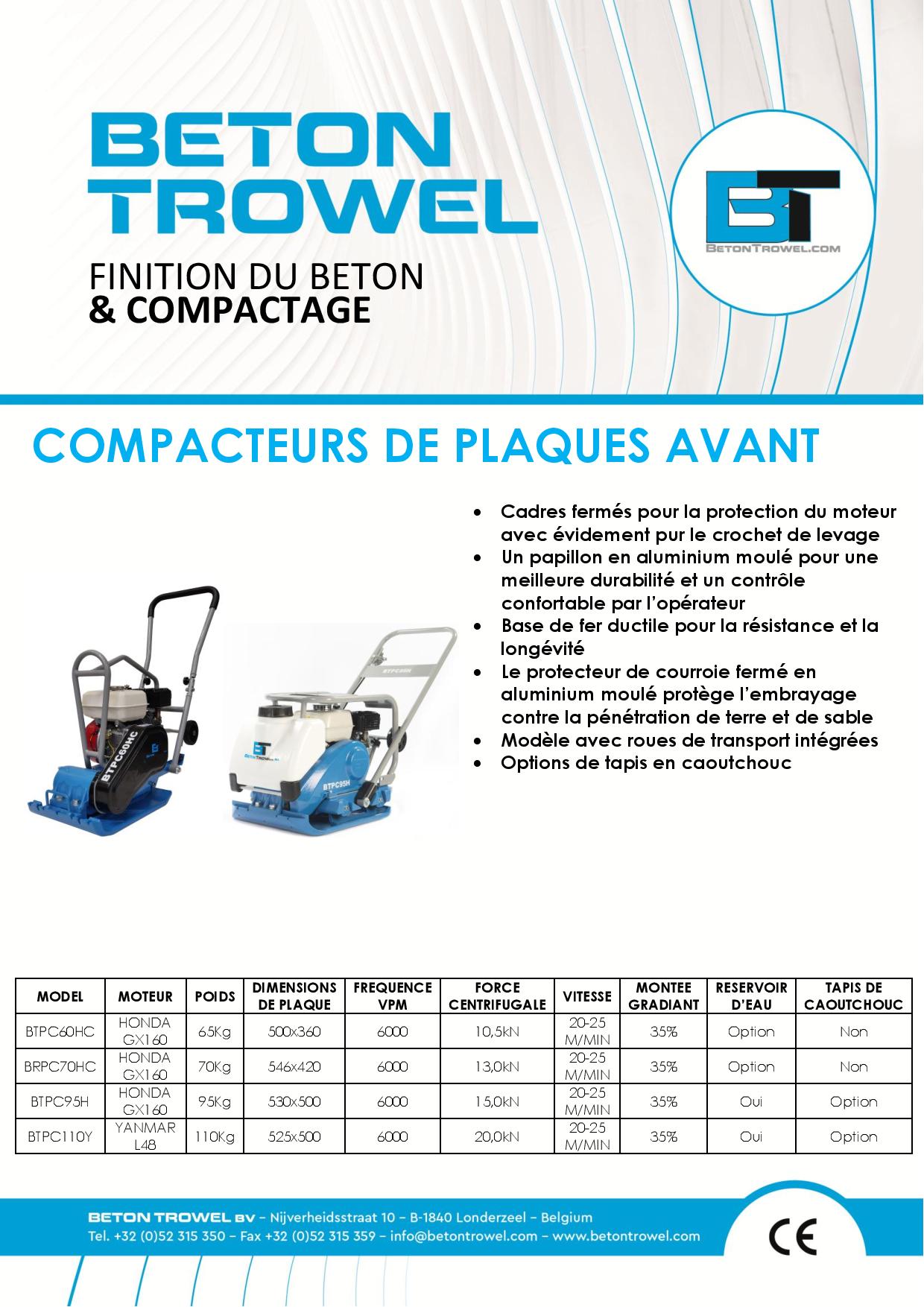

Compacteurs De Plaques Avant

Compacteurs De Plaques Avant

Reversable Plate Compactors

Reversable Plate Compactors

Compacteurs De Plaques Réversibles

Compacteurs De Plaques Réversibles

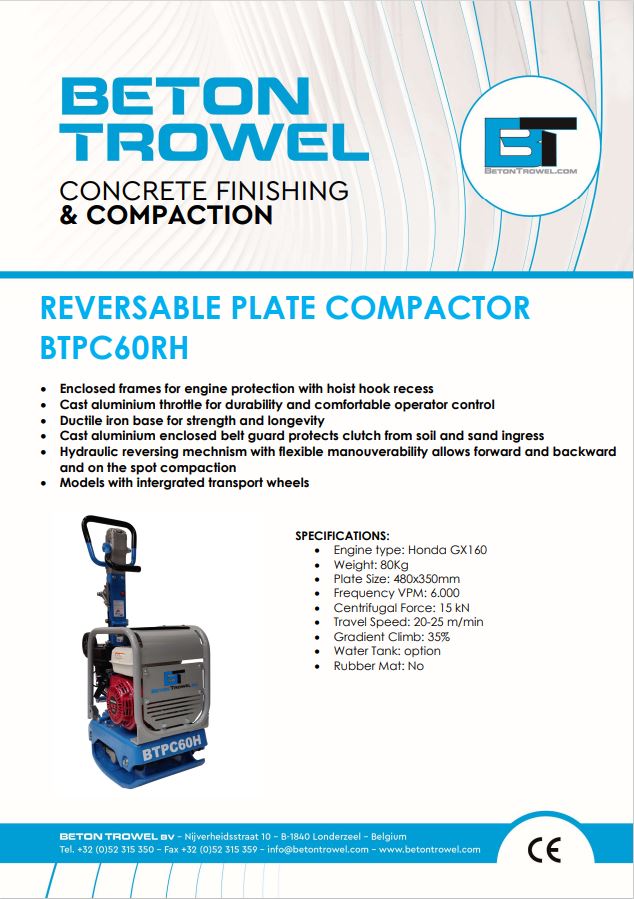

BTPC60RH

BTPC60RH

BTPC160H

BTPC160H

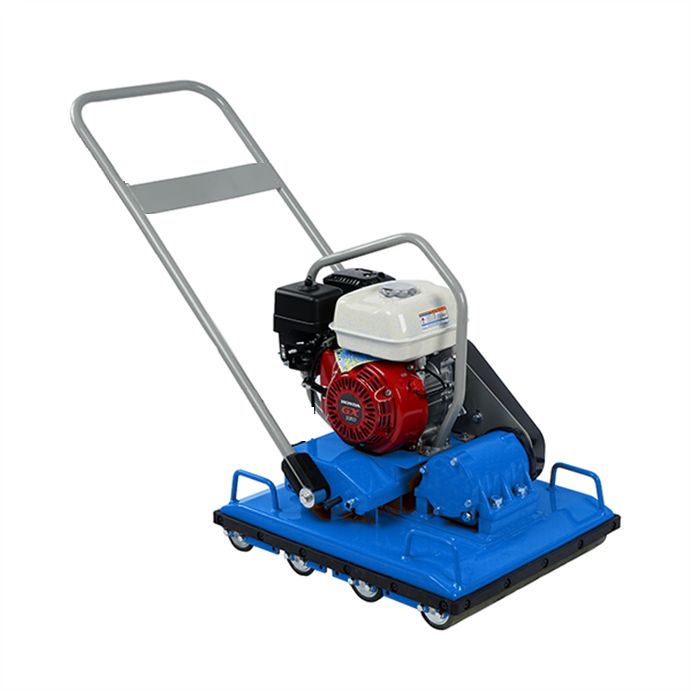

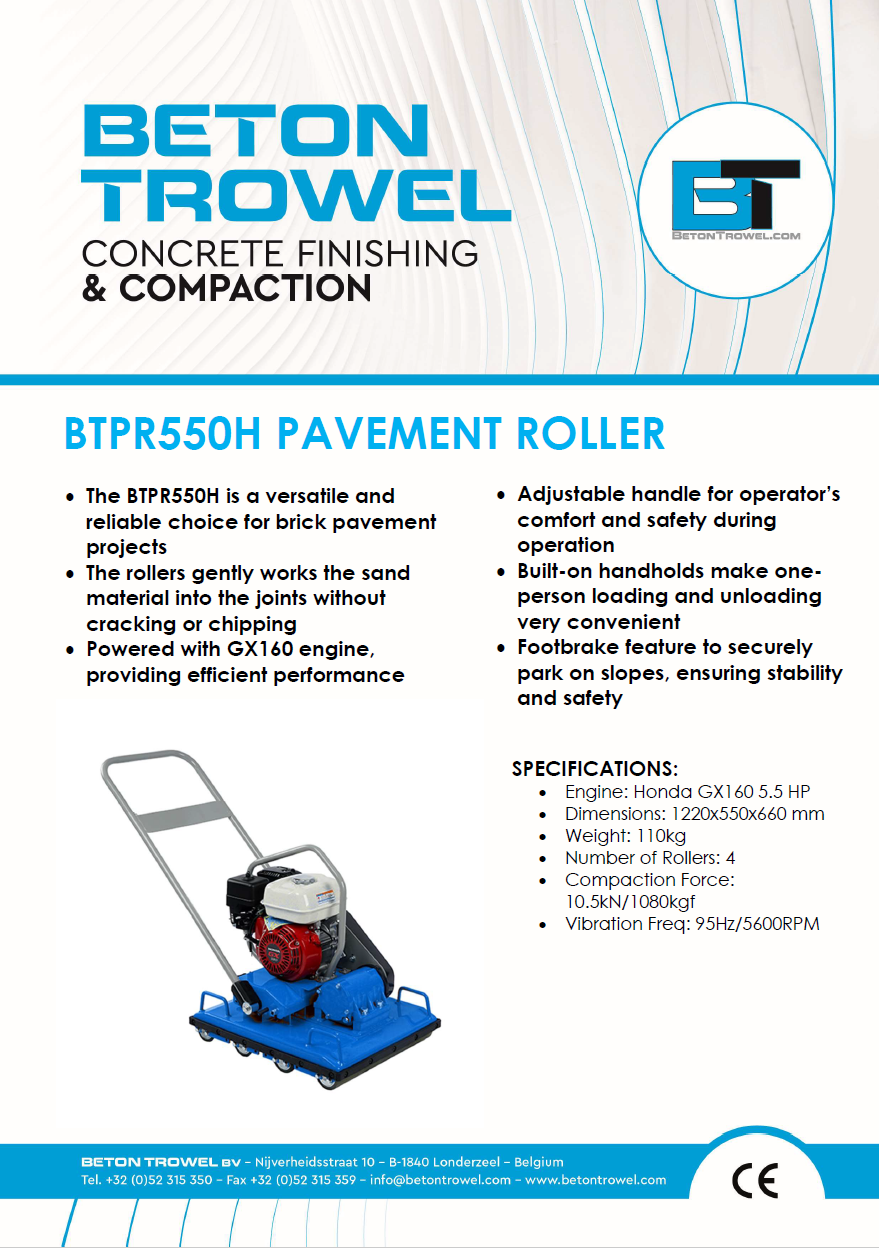

BTPR550H Pavement Roller

BTPR550H Pavement Roller

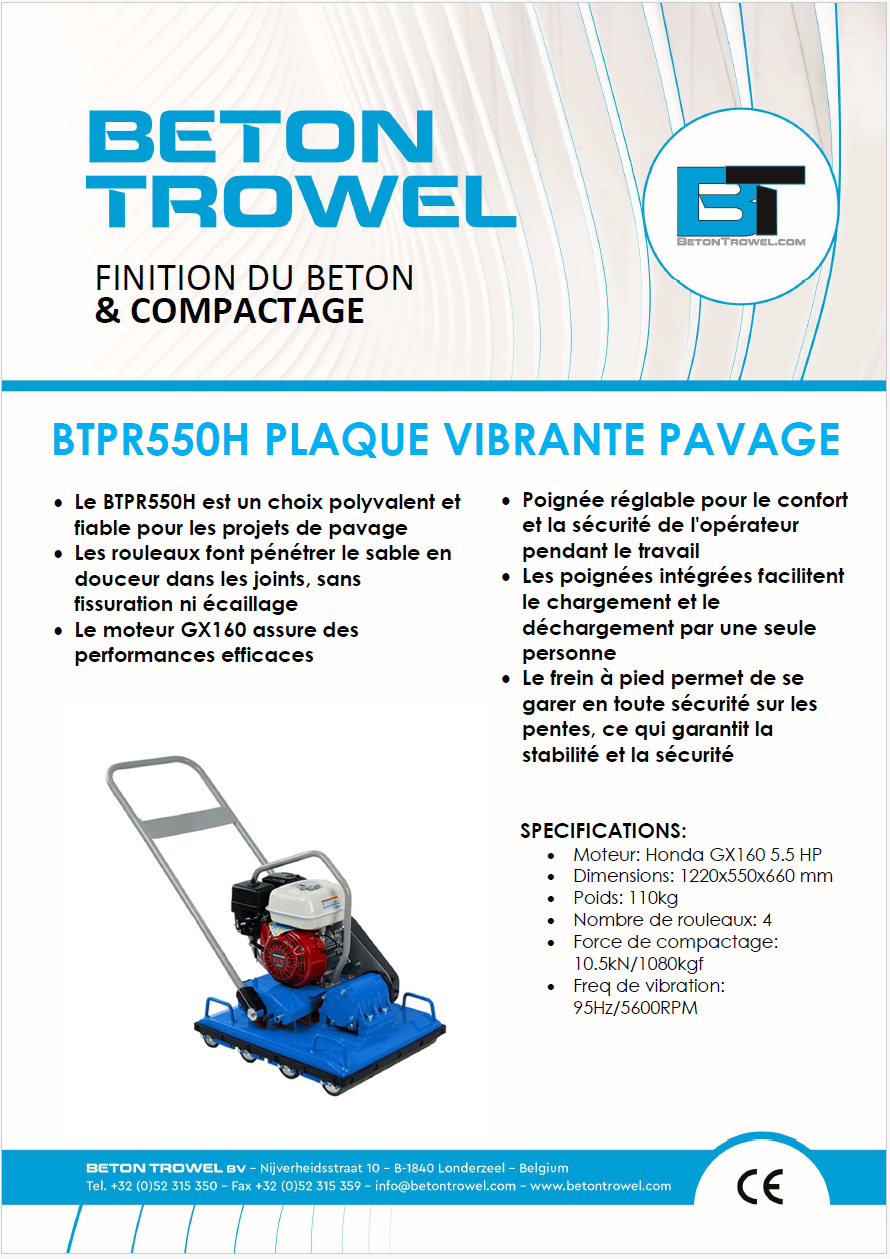

BTPR550H Plaque Vibrante Pavage

BTPR550H Plaque Vibrante Pavage
